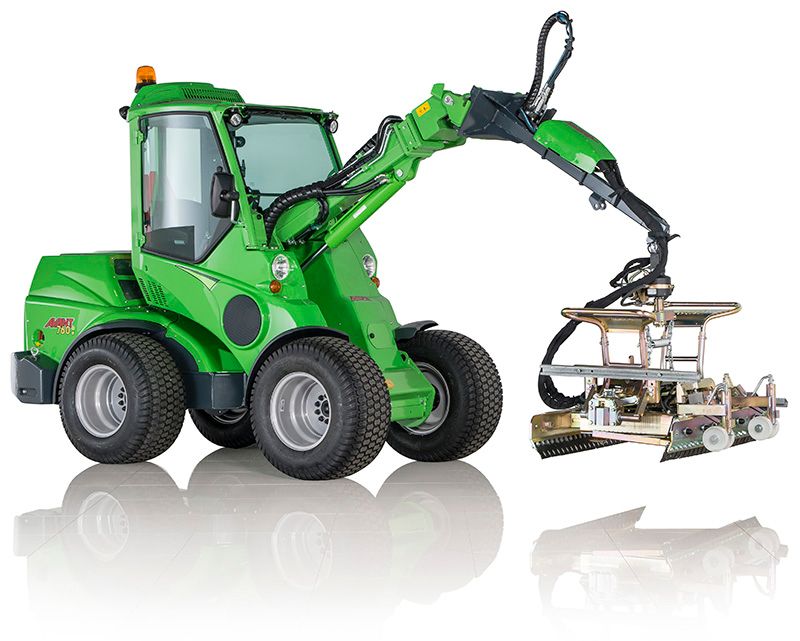

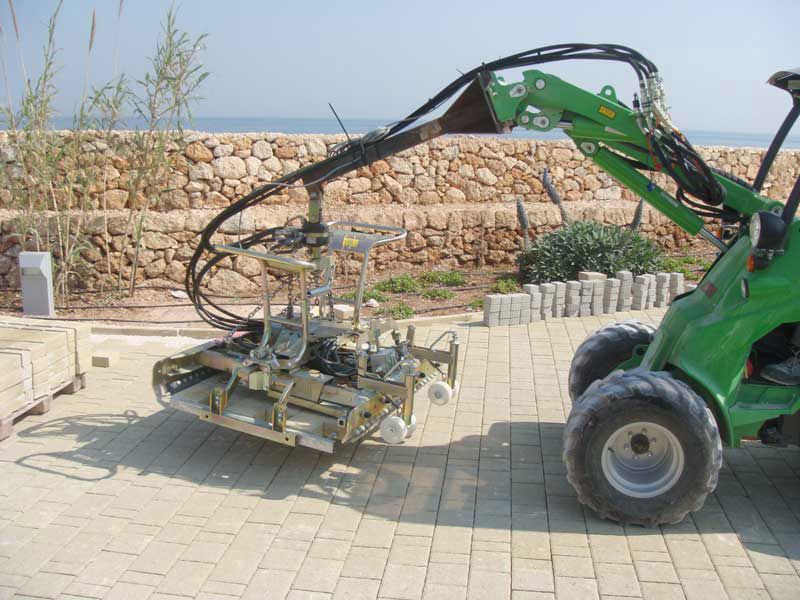

Stone Installation Clamp

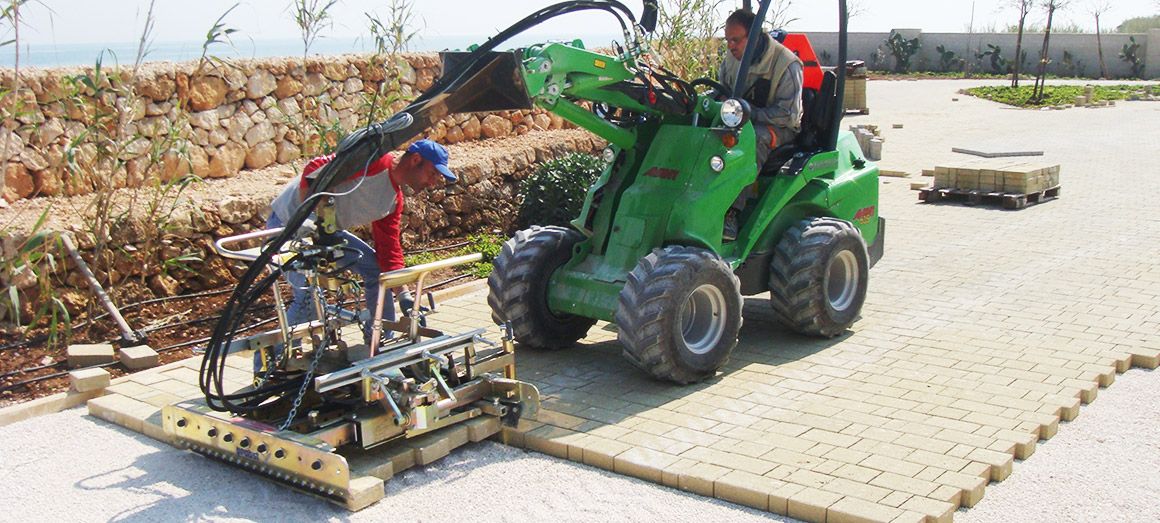

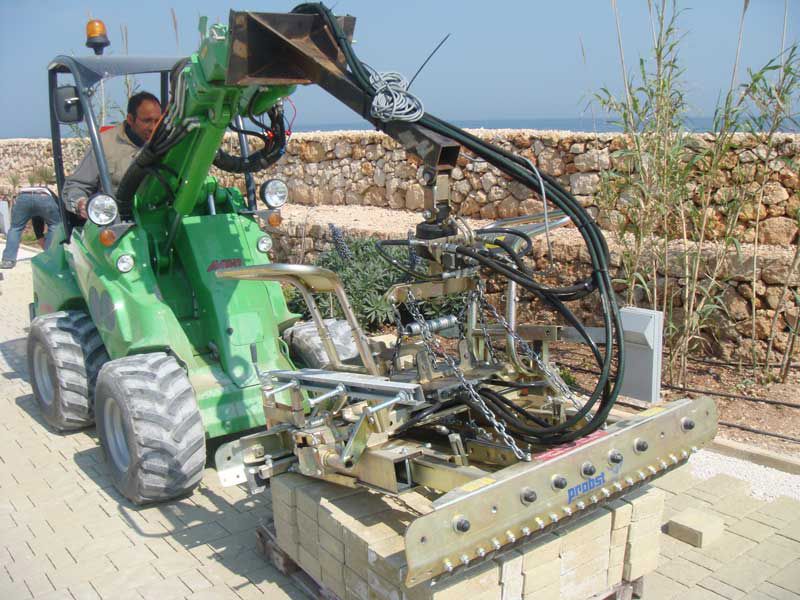

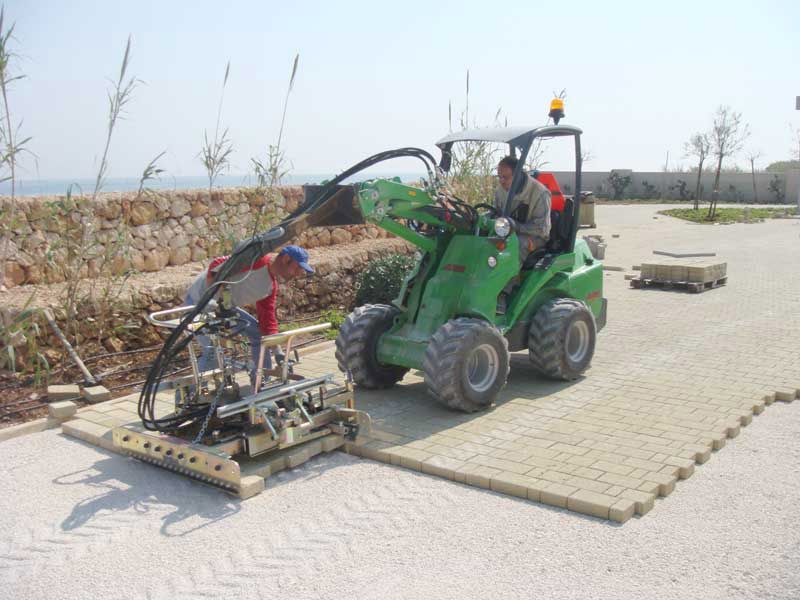

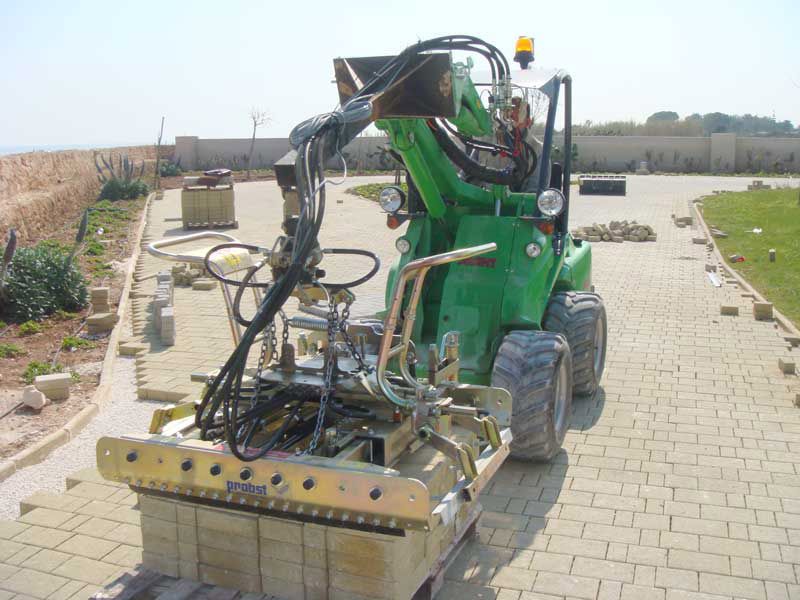

With the hydraulic installation clamp, you can lay paving stones quickly and efficiently. The installation clamp takes a whole layer of paving stones directly from a pallet, which can then be lifted on to the area to be paved.
The hydraulic installation clamp is equipped with:
- Adjustable side grippers for the exact shaping of the installation pattern
- Hydraulic rotation
- ADV pushing off the device. The ADV presses the blocks into the laying course automatically once the clamp is opened – this way the cocking of the blocks can be avoided and a lot of time is saved because one doesn’t have to reposition the blocks by hand.
TECHNICAL INFORMATION
| GRIPPING WIDTH | 575 - 1245 mm | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TOTAL WIDTH | 990 - 1480 mm | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| LIFTING CAPACITY | 400 kg | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| WEIGHT | 230 kg | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| PRODUCT NO | A21180 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| *ATTENTION! Requires attachment control switch pack on the loader. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
